Design, analyze, model, measure, document and visualize civil infrastructure with ease.

New Features

• BIM Bridge
• Issue handling and BCF file handling
• Integrations with Autodesk Construction Cloud (ACC)
• Integration with Catenda CDE Issue bar
• Import Civil 3D data into Civil Designer entities
• BIM Naming for IFC export can use an Excel template
• Load IFC properties from dictionary into properties dialog
• Implement logic to add properties and Psets to IFC objects
• IFC Properties Dialog allows add/delete properties from the civil designer property set

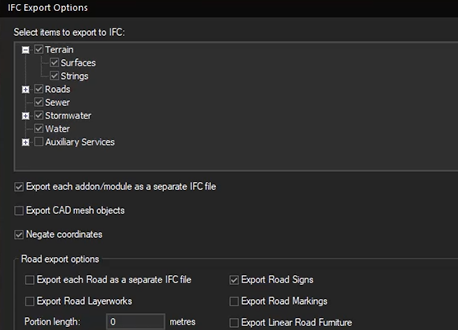

• IFC export for Terrain, CAD Meshes, Sewer, Storm, and Water includes object types, relationship sets and PSets
•
• IFC Validation for Water and CAD Meshes

New Features

• Insert Point in Hatch Boundary

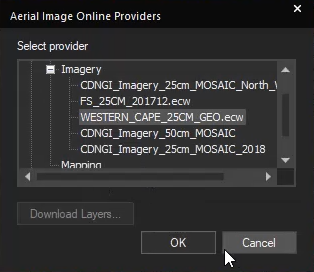

• Aerial Imagery supports Chief Directorate of National Geospatial Information
•
• Aerial Image supports imagery from South Africa's Chief Surveyor General
• Table Entity: CSV & Excel Export
• Table Entity: DWG Cell Borders & Colours

Enhancements

• Autoload remember last used addon
• Added an XRef Manager Refresh button (unloads and reloads all the loaded xrefs that are "out of date").
• User interface updates
•
• Control Centre Listboxes resize like Block Browser
• Export KML can export CAD entities using ByLayer colours
• Draw Line cad bar added to enable entering line length and angle
• Add "Paste" option to Coordinate Jump CAD bar
• Draw dimensions now remembers snap mode for each step of the draw function
• Export to PDF can now handle MrSID and ECW images
• Export to PDF can now export 3D PDFs (embedded PRC data)
• Import 3D Models: Improved to import as SubDMeshes if possible
• DWG/PDF import/export updated to use ODA 25.9 DWG libraries

New Features

• Import Projection Settings from PRJ File

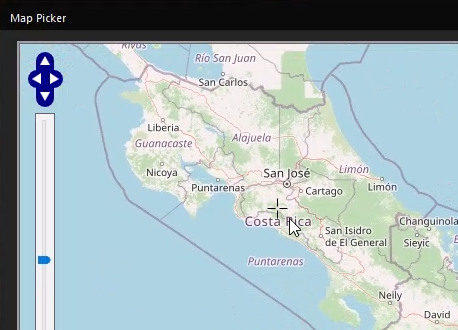

• Choose Projection via World Map
•
• Import Civil 3D Model

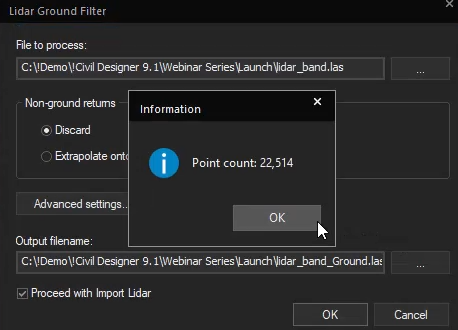

• Lidar Ground Filter for non-ground points
•
• GeoSmart elevation included in Point Grid data
• Export IFC Includes Terrain Strings
• Export LandXML Includes Terrain Strings
• Shapefile Export Includes Parcels
• Reheight String includes an Add Constant Option
• Create Child Strings retains Toe settings
• Terrain Strings Visibility Control using 'Show All' and 'Hide All' buttons
• Multi-Select Display Settings
• Parcels with Land Use Categories
• Elevation Annotation is linked to the terrain surface
• Slope Annotation Enhancements

Enhancements

• Improvements to the grid Subcatchment function
• Improvements to the Parcels list
• Filenames stored in the system %temp% folder are now unique

New Features

• Allow input of Urban design criteria in the Design Criteria Dialog
• Cross-section roads are automatically converted to Strings model if modified
• Output Component Quantities per continuous chainage range for left and right

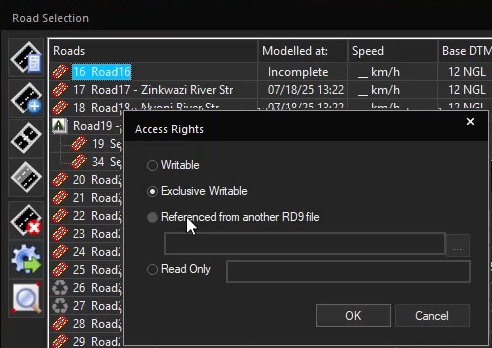

• Writable, exclusive writable, referenced and read-only road access permissions
• IFC Export for roads aligned with IFC4x3 standard
• Interface for Roads files access and permissions
•
• Writable, exclusive writable, referenced and read-only road access permissions
• Allow single roads to be read only
• Component Quantities output by chainages or chainage range
• Roads Control Panel handles crossfalls for a Dual Crowned Carriageway
• Calculate minimum drainage level to road for parcels
•
• Specify the CAD output layer for each run of a Water Film Thickness analysis

Enhancements

• Import Civil 3D services as Auxiliary services
• Junctions are listed in Control Centre for the current road
• Addon Strings are listed in Control Centre for the current road
• Add curve length to the PI data box in the Vertical Alignment graphical view
• Cursor position on the cross-section view is indicated on Plan
• Resetting Report Quantities clears all reports
• Roads Control Panel can handle crossfalls for a Dual Crowned Carriageway
• Addon Strings are used to define median geometry including bull-nose intersections

New Features

• Wind Turbine Transporter vehicle configurations

New Features

• Auto-Height Linear Road Furniture option
• Arrow Markings are dynamically linked to a road

New Features

• Create custom bedding classes
•
• Catalogue items can now be stored in the Water project

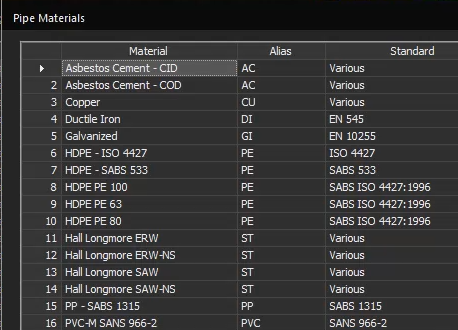

• New Pipe materials added to catalogue
• Land Use Categories now included
•
• Node Data dialog shows contributing demands from erf connections
• Connections Data dialog has a new field AADD
• Analyse open surface flow

Enhancements

• Mark preferred pipe materials in the catalogue and change pipe material names
• New results format and additional results
•
• Improved Results Graph dialogs
• Optionally set liquid temperature when working with hot water supply
• Demand patters, user categories and fire risk categories can be imported

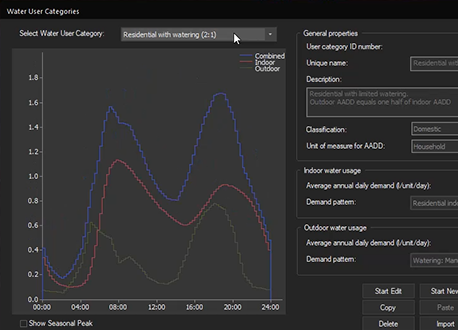

• User categories include an indoor and outdoor component

New Features

• Vertical alignment displays a graphically marked selection, or specified section of the network
•
• View Erf Connections in the vertical alignment according to colour scheme
• Import Storm networks from a Civil 3D DWG

Enhancements

• Improved the analysis speed and disk usage efficiency
• Improved ease of changing SWMM Node and Link Types
• Filter input, edit and results spreadsheets
• Unused node and link types can be deleted

New Features

• Vertical alignment displays a graphically marked selection, or specified section of the network
• View Erf Connections in the vertical alignment according to colour scheme
• Import Sewer networks from a Civil 3D DWG
• Filter input, edit and results spreadsheets
• Tie an Erf connection to a parcel
• Show Sewer Connection Types for Parcels
• Land use categories automatically assigned to connections
• Use up to 150 land use categories

Enhancements

• Improved parcel connection information
• Improved the analysis speed and disk usage efficiency
• Unused node and link types can be deleted
• Load and save land use categories to file
• Add parcel information to sewer connection spreadsheet

New Features

• Cross section plotting allows a slope option for Auxiliary services annotation
• Plan plotting generates a list on plan layout plots with erf number and level
• Sewer and Water connections Plan lists include erf number column
• Setting out lists are generated as Table entities, instead of grouped text and lines
• Publish plan setting out lists as CSV files
• Plot road markings on Road long sections
• Update plotted viewport centre, grids and setting out lists are automatically re-generated
• Dedicated Masshaul diagram plotting
• Remove all button in the plan plot setup dialog

Enhancements

• Extra Plan junction list label options
• Improve the plotting of long section grids
• Terrain string long section plotting: Added an auto scroll to next page option
• Sewer/Storm long section plotting: Add options to plot either (or both) hydraulic grade line and energy line.
• Water long section plotting: Added chainage range specification
• Support for leading zeros in Plot Layout naming ("{PLOTNO2}" and "{PLOTNO3}" tags)
• Plot Generate BIM Naming scheme updated to use new Excel template (ISO 19650-2)
