Foul Water
Full network analysis and design with connection modelling, which calculates inflows, attenuation, stormwater infiltration, pipe sizes, levels, slopes and trench excavation quantities.
Discover Key Features
- Foul water connection and network analysis

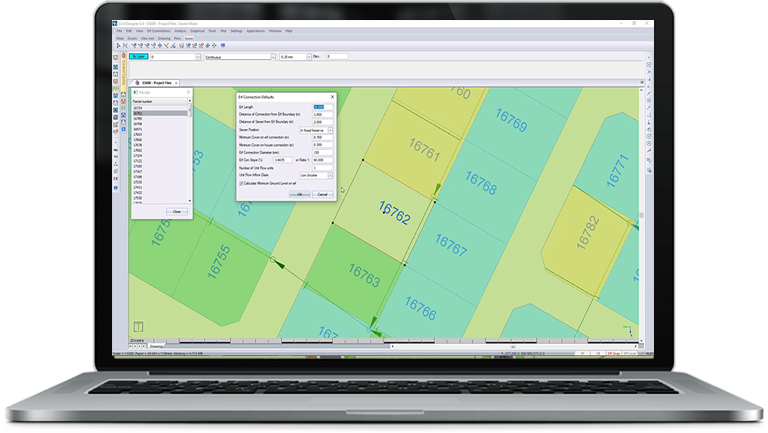

- Property connection analysis using minimum ground level
- Unit hydrograph, AADD, flow/peak factor inflow methods
- Dynamic time simulation with multiple inflow hydrographs
- Pump stations with up to 4 pumps with various controls
- Calculates optimal culvert size, slope, inlet and outlet levels
- Pressure flow analysis for surcharged systems
- Calculates trench volumes, pipe lengths and manhole depths
- Generates layout plan with pipe schedule and long sections
- Accurate 3D rendering of node structures
- Analyses flow, overflow, capacity, velocity and flow depth
We appreciate the time saving features
"We used Civil Designer Software for the design of the bulk earthworks, roads, and for all the stormwater, sewer and potable and semi-purified water infrastructure services. We have always appreciated the software's time saving features and the excellent support service." -Heiko Fleidl, BSc.Eng (Civil), WCE Consulting Engineers, Windhoek, Namibia.Supported by civil engineering professionals
"I have used Civil Designer for 25 years. It is developed and supported by civil engineering professionals who really understand the challenges we face." -Carlos Dos Santos, Associate at AECOM.
Easily adjust your design to meet the specifications stipulated by local standards.
Find out More
Download a detailed pdf brochure
