Vehicle Path Analysis

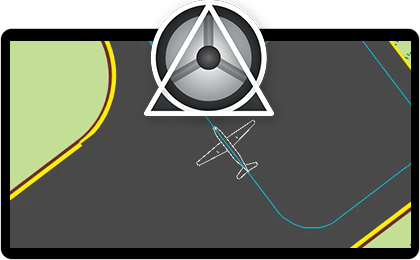

Simulation of low speed turning manoeuvres along a specified tracking path for cars, trucks, articulated vehicles, trailers, commercial aircraft, and forklifts in both forward and reverse.
Discover Key Features
- Dynamic simulation of vehicle tracking paths
- Multiple vehicle libraries including UK standards
- Easy track path definition and creation
- Define way points along the track path
- Projecting load clearance analyzed
- Cargo Point tracking function
- Forward and reverse movements
- Track path to CAD layer with test vehicle profile
- Works in conjunction with existing CAD entities
Civil Designer saves design time
"The modelling of the 97.1km stretch of road took a two-man team only 3 days to complete. The time taken to evaluate the quantities, including the vertical grade for the special vehicles traversing the access roads usually only took about 3 hours to complete. By applying a typical design intersection template Civil Designer took about 2 hours to create all 36 intersections at each Windfarm, which was amazing." -Adnan Petersen, Infrastructure Technologists at Gibb Engineering.The support is second to none
"We appreciated Civil Designer's time saving features and their technical support service is second to none." -Sakkie Nieuwoudt, Civil Engineer at Endecon Ubuntu, Limpopo, South Africa.
"Analysis of fluid handling networks has never been easier."
